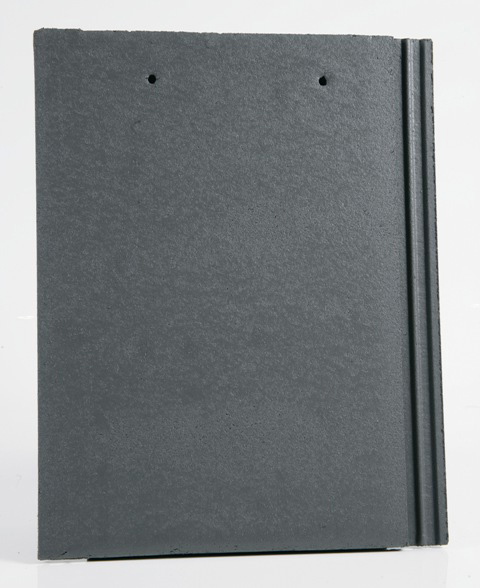

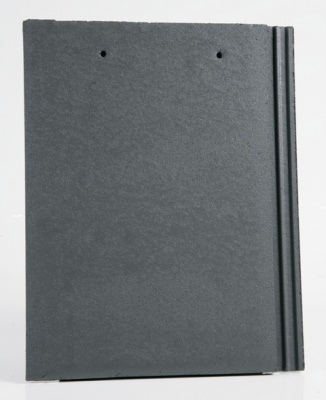

Lagan Flat Roof Tile

Lagan Flat Roof Tile
  Zoom
€1.17 Inc. VAT :  €0.95

Product Code:  LAGTIL500A
Brand:  Lagan Tile

Availability:

To order please call (+353) 01 621 5677



Specification



Size of Tile Overall 420 x 330mm
Minimum Pitch 17.5 degrees (for rafter length over 8 metres or sites with a high degree of exposure please contact us)
Maximium Pitch 90 Degrees (subject to fixing specifications)
Headlap (minimum) 75mm above 25 degrees // 100mm at 25 degrees or below
Gauge (maximum) 345mm
Cover width of one tile (nominal) 295mm
Covering Capacity (Headlap 75mm) 9.8 tiles / sq metre
Covering Capacity (Headlap 100mm) 10.6 tiles / sq metre
Hanging Length (nominal) 400mm
Weight per 1000 (approx) 5.5 tonnes
Recommended Batten size (see BS5534) . Rafter centres up to 600mm 50 x 25mm
Recommended Nail size 50mm x 3.35mm



Colours:

Black

Brown

Antique Red

Antique Brown

Red

Anthracite
