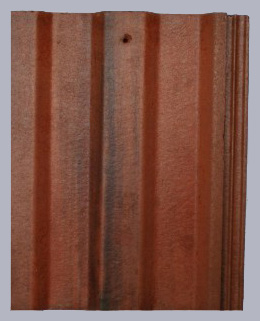

Lagan Square Top Roof Tile

Lagan Square Top Roof Tile
€1.29 Inc. VAT :  €1.05

Product Code:  LAGTIL500E
Brand:  Lagan Tile


In stock, immediate despatch

Size of Tile (overall) 420 x 330mm
Minimum Pitch 22.5 degrees
Maximum Pitch 90 degrees (subject to fixing specification)
Headlap (minimum) 75mm above 25 degrees // 100mm at 25 degrees or below
headlap (maximum) 100mm
Gauge (maximum) 345mm
Covering Width of one tile (nominal) 300mm
Covering Capacity (Headlap 75mm) 9.7 / sq metre
Covering Capacity (Headlap 100mm) 10.4 / sq metre
Hanging Length (nominal) 400mm
Weight per 1000 (approx) 5.0 tonnes
Recommended batten size (see BS5534) . Rafter centres up to 600mm 50 x 25mm
Recommended Nail size 55 x 3.35mm



Antique Red
